Description
Specifications
| Product model | IPRM-G Coffee Slurry Inline Brix Monitor |
| Measurement item | Brix,Refractive Index (nD), temperature. condiment |
| Measuring range | 0.00 – 70.00% Brix |
| Resolution | 0.01% Brix |
| Measurement accuracy | ± 0.1% Brix |
| Brix range | Temperature corrected 0-100°C |
| Process temperature | -10°C up to +100°C |
| Prism | Sapphire |
| Wetted parts | Stainless Steel SUS 316L |
| Power supply | 24 V DC |
| Interfaces | 1 output 4 – 20 mA,1 serial output RS485 |
| International Protection class | Display surface：IP65 Water resistant |
| Process pressure | Max. 1 MPa (145 psi, 10 bar) |
| Dimensions and weight | length 138 x diam.109mm; approx. 1870g |
| Cleaning components Options | IPRM-US, IPRM-Wiper
(No need to clean components for the food industry) |
| Fitting Options | IDF/ISO clamp union (1-3 inches), Flange, Compression Fitting G1/4 |
Dimensions
Measurement Principles
The refraction of light is a phenomenon wherein the direction that light is traveling changes as it passes through different mediums.
Through this phenomenon, we can observe as light’s direction changes and the “bent” appearance of substances even in the seemingly familiar, ordinary places in our day to day lives.
For example, imagine the lens of a pair of glasses and a pool.
When looking through the lens, an object appears larger or smaller than it is in reality.
When standing inside a pool, as you peer downward from the water’s surface, your legs will look shorter than they actually are.
As light moves from medium A (in this case, air) to medium B (lens and the pool’s water), it refracts.
Furthermore, it is known that light’s refraction changes depending on the concentration of a liquid.
The refractive index, which is a value that expresses the degree of refraction, is proportional to the density (mixture ratio) of a component.
Therefore, if there is 10g of sugar contained in 100ml of an aqueous solution and 20g of sugar contained in 100ml of an aqueous solution, the latter will have a higher refractive index value.
This difference in refractive index due to concentration variance has also been confirmed in solutions other than sucrose.
The properties of both the phenomenon known as the refraction of light and differing refractive index depending on concentration, are used as the principles of refractometers.
In addition to measuring the refractive index of a liquid, refractometers also display the concentration, converted from the refractive index.
Application highlights

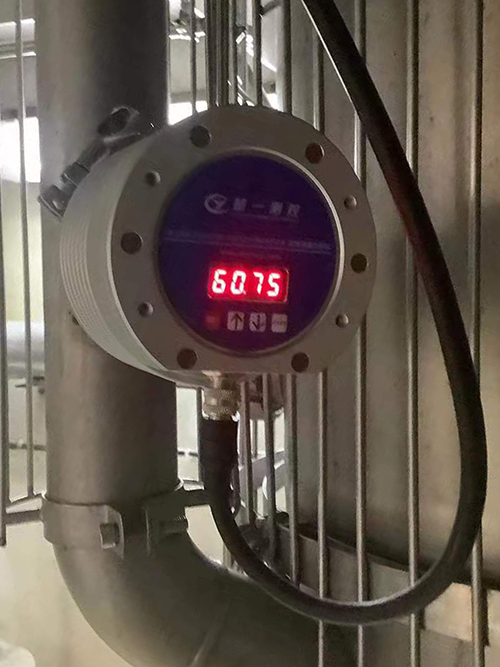

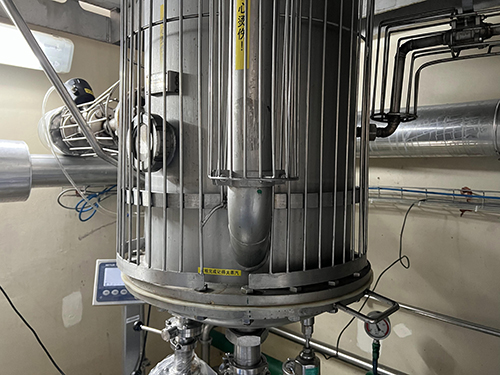

IPRM-G Coffee Slurry Inline Brix Monitor is an instrument for real-time measurement of espresso slurry, installed in tanks or bypass pipes, for 24-hour continuous Brix measurement. with high temperature resistance, high monitoring accuracy, free of operating costs, and a minimum of 100,000 hours of use.
IPRM-G inline brix monitor it can be used in the following industries:
Food and beverage industry
Sugar, starch, sweeteners
Biofuels and fermentation industry
